Quick Details

  • Condition: New
  • Type: Shuttle Loom
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: LULI
  • Model Number: GA615A2 -(1*4)
  • Quality: Superior

Packaging & Delivery

Packaging Details wooden case.
Delivery Time 45days

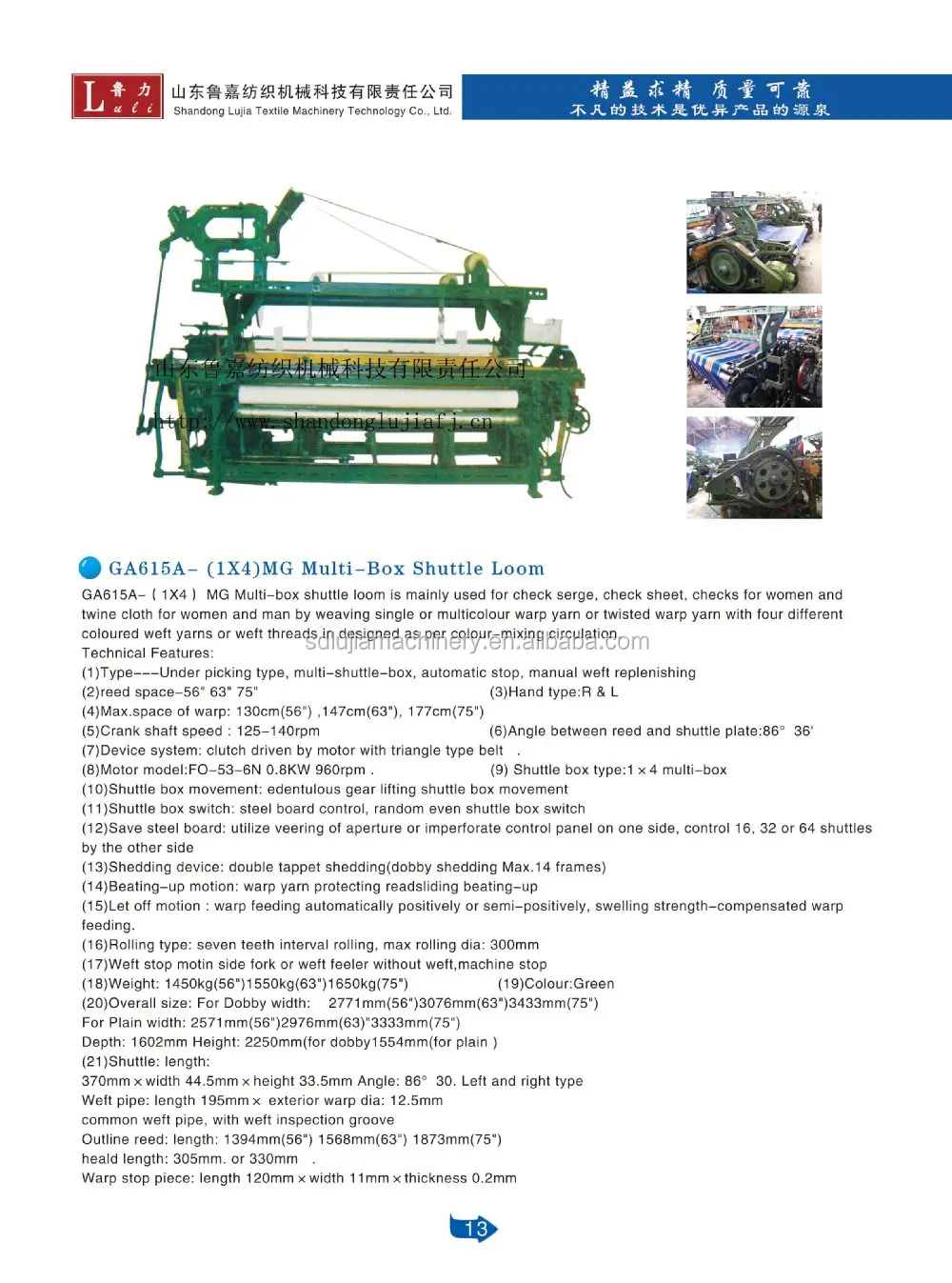

The Multi-box weaving loom machine applications:
GA615A2(1X4) Multi-box shuttle loom is mainly used for check serge, check sheet, checks for women and twine cloth for women and man by weaving single or multicolour warp yarn or twisted warp yarn with four different coloured weft yarns or weft threads in designed as per colour-mixing circulation.
Technical Features
TypeUnder picking type, multi-shuttle-box, automatic stop, manual weft replenishing
reed space56"63"75"
Hand typeR &L
Max.space of warp130cm(56") ,147cm(63"), 177cm(75")
Crank shaft speed 125-140rpm
 Angle between reed and shuttle plate 86°36¹
 Device system clutch driven by motor with triangle type belt
 Motor model FO-53-6N 0.8KW 960rpm
 Shuttle box type 1×4 multi-box
 Shuttle box movement 1×4 multi-box
 Shuttle box switch steel board control, random even shuttle box switch
 Save steel board utilize veering of aperture or imperforate control panel on one side, control 16, 32 or 64 shuttles by the other side
 Shedding device  double tappet shedding(dobby shedding Max.14 frames)
 Beating-up motion warp yarn protecting readsliding beating-up
 Let off motion warp feeding automatically positively or semi-positively, swelling strength-compensated warp feeding.
 Rolling type seven teeth interval rolling, max rolling dia: 300mm
 Weft stop motin side fork or weft feeler without weft,machine stop
 Weight  1200kg(56")1300kg(63")1400kg(75")
 Colour Green
 Overall size: For Dobby width

2771mm(56")3076mm(63")3433mm(75")1200kg(56")1300kg(63")1400kg(75")

For Plain width: 2571mm(56")2976mm(63)"3333mm(75")

Depth: 1602mm Height: 2250mm(for dobby1554mm(for plain

 Shuttle: length:

370mm×width 44.5mm×height 33.5mm Angle: 86°30. Left and right type

Weft pipe: length 195mm× exterior warp dia: 12.5mm

common weft pipe, with weft inspection groove

Outline reed: length: 1394mm(56") 1568mm(63") 1873mm(75")

heald length: 305mm. or 330mm .

Warp stop piece: length 120mm×width 11mm×thickness 0.2mm




Technical Features:
(1)Type---Under picking type, multi-shuttle-box, automatic stop, manual weft replenishing
(2)reed space-56" 63" 75"
(3)Hand type:R & L
(4)Max.space of warp: 130cm(56") ,147cm(63"), 177cm(75")
(5)Crank shaft speed : 125-140rpm
(6)Angle between reed and shuttle plate:86°36'
(7)Device system: clutch driven by motor with triangle type belt   .
(8)Motor model:FO-53-6N 0.8KW 960rpm .
(9) Shuttle box type:1×4 multi-box
(10)Shuttle box movement: edentulous gear lifting shuttle box movement
(11)Shuttle box switch: steel board control, random even shuttle box switch
(12)Save steel board: utilize veering of aperture or imperforate control panel on one
side, control 16, 32 or 64 shuttles by the other side
(13)Shedding device: double tappet shedding(dobby shedding Max.14 frames)
(14)Beating-up motion: warp yarn protecting readsliding beating-up
(15)Let off motion : warp feeding automatically positively or semi-positively, swelling
strength-compensated warp feeding.
(16)Rolling type: seven teeth interval rolling, max rolling dia: 300mm
(17)Weft stop motin side fork or weft feeler without weft,machine stop
(18)Weight: 1200kg(56")1300kg(63")1400kg(75")
(19)Colour:Green
(20)Overall size: For Dobby width:
2771mm(56")3076mm(63")3433mm(75")
For Plain width: 2571mm(56")2976mm(63)"3333mm(75")
Depth: 1602mm Height: 2250mm(for dobby1554mm(for plain )
(21)Shuttle: length:
370mm×width 44.5mm×height 33.5mm Angle: 86°30. Left and right type
Weft pipe: length 195mm× exterior warp dia: 12.5mm
common weft pipe, with weft inspection groove
Outline reed: length: 1394mm(56") 1568mm(63") 1873mm(75")
heald length: 305mm. or 330mm   .
Warp stop piece: length 120mm×width 11mm×thickness 0.2mm    .
