GA747-III flexible rapier loom

FOB Reference Price:Get Latest Price
US $3,200-6,500 / Set | 4 Set/Sets Set (Min. Order)
Supply Ability:
100 Set/Sets per Month Month
Port:
ANY PORT
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Rapier Loom
Place of Origin:
Shandong, China (Mainland)
Brand Name:
LULI
Model Number:
GA747-III
Weight:
2500kg
Power(W):
1.1KW
Certification:
ISO9001 CE
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Quality:
Superior
Packaging & Delivery
Packaging Details
wooden case.
Delivery Time
45days.
The rapier loom applications:

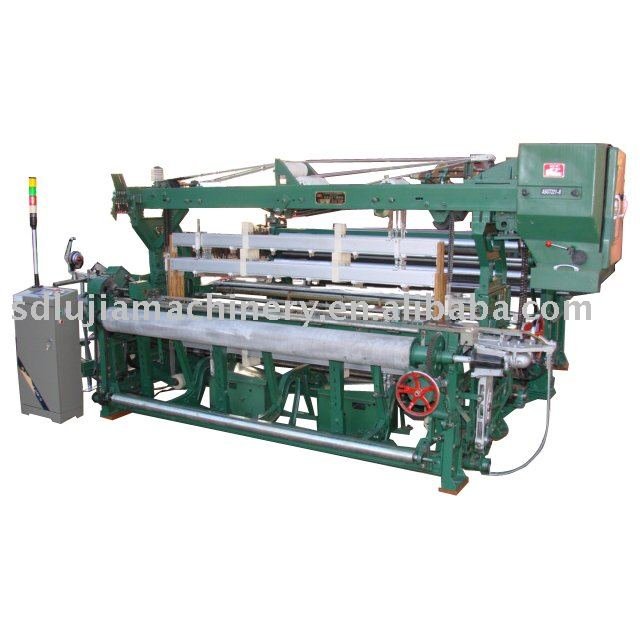

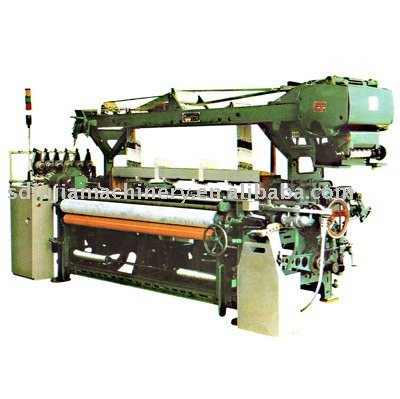

GA747-III Flexible Rapier Loom is a new-model rapier loom based on GA747 series  rapier loom and modified for three times according to the clients'suggestions. This machine has wider applicability and stronger ability in weaving heavy fabrics,used to weave tabby,satin,twill, and jacquard for cotton-hemp,chemical fibre and spun-silk. it adopts flexible rapier ribbon in weft insertion, ASGT211 dobby shedding,six-color weft selecting, out-loom let-off and centralized oiling. it can locate and self-stop when occuring weft-breaking, warp-breaking and weft accumulator malfunction. It adopts KJ indicating lamp to indicate and adopts light-weight, high-strength carbon fibre compoun material and aluminum ally material, with simple and reliable structure. Moreover,its machine frame and warp let-off structure is as common as that of GA615 shuttle loom. This machine is tested as qualified product and issued qualification certificate by nation-level inspection center.
The main performance and specifications
1)Working Width:180cm   200cm     230cm     250cm    280cm 300cm  340cm 360cm
(2)YarnCotton hemp, chemical fiber and blending
(3)working speed145-190r/minute
(4)Weaving yarn size chemical fiber 75-1800den., others: 13-195tex
(5)Number of  head frames16  frames
(6)Color number of weft yarnsix colors (dobby control)
(7)Slvedge typedoup edge
(8)COLOURGREEN
(9)Weft density30-800 threads/10cm
(10)The diameter of warp flangesΦ550mm-Φ600mm
(11)The meter of fullclothΦ400mm
(12)Warp stop motionsix-row electrical control
(13)Weft stop motionpiezoelectric ceramics
The main performance and specifications:
(1)Working Width: 180cm   200cm     230cm     250cm    280cm 300cm  340cm 360cm.
(2)Yarn:  Cotton hemp, chemical fiber and blending
(3)working speed:145-190r/minute
(4)Weaving yarn size: chemical fiber 75-1800den., others: 13-195tex
(5)Number of  head frames : 16  frames
(6)Color number of weft yarn: six colors (dobby control)
 (7)Slvedge type: doup edge
(8)COLOUR:GREEN
(9)Weft density:30-800 threads/10cm
(10)The diameter of warp flanges:Φ550mm-Φ600mm
(11)The meter of fullcloth:Φ400mm .
(12)Warp stop motion: six-row electrical control .
(13)Weft stop motion: piezoelectric ceramics.
.
